VBA: Macro Security and Relative Referencing a Complete Step-by-Step Guide

Visual Basic for Applications (VBA) is a powerful tool for automating tasks in Microsoft Office applications like Excel. However, this power comes with two critical considerations: security—protecting your system from malicious code—and flexibility—ensuring your automation works reliably across different workbook structures. This article delves into these twin pillars, offering comprehensive guidance on Macro Security and leveraging Relative Referencing in your VBA code for resilient automation.

Macro Security: Protecting Your Digital Environment

Macro security is a paramount concern, as VBA's ability to automate almost anything in your operating system makes it a prime target for malware, including ransomware and phishing attacks. By default, modern versions of Microsoft Office have significantly tightened macro security, but users must understand and manage these settings.

Understanding Macro Security Levels

Microsoft Office’s Trust Center controls how macros are handled. These settings are crucial for determining whether a file containing VBA code is allowed to run. You can access these settings in most Office applications (like Excel) via File > Options > Trust Center > Trust Center Settings... > Macro Settings.

Screenshot of Excel's Developer mode showing the Macro Settings window in the Trust Center. The settings display options for managing VBA macros, with the second option "Disable VBA macros with notification" selected. An option to enable Excel 4.0 macros when VBA macros are enabled is also checked.

Security Level	Description	Recommendation
Disable all macros without notification	Macros are blocked silently. This is the safest setting, but it prevents legitimate macros from running.	Use this if you never use macros or only work with files in Trusted Locations.
Disable all macros with notification	Macros are blocked, but a Security Warning bar appears, allowing the user to enable them on a case-by-case basis. This is often the default setting.	Good balance for most users. Enables you to approve macros from known, trusted sources.
Disable all macros except digitally signed macros	Only macros with a valid digital signature from a Trusted Publisher will run. Unsigned macros are blocked, often without notification.	Highly Recommended for organizations. It ensures that only code from verified sources can execute.
Enable all macros (not recommended; potentially dangerous code can run)	All macros run automatically, regardless of source. This is extremely dangerous.	NEVER USE THIS SETTING. It leaves your system vulnerable to malicious attacks.

Export to Sheets

Step-by-Step: Managing Macro Security

To configure your macro security settings:

1. Open an Office application (e.g., Excel).

2. Click on the File tab.

3. Click Options (usually at the bottom left).

4. In the Excel Options dialog, select Trust Center.

5. Click the Trust Center Settings... button.

6. Select Macro Settings from the left pane.

7. Choose the desired security level (e.g., "Disable all macros with notification" or "Disable all macros except digitally signed macros").




8. Consider adding Trusted Locations. Files saved in these locations will run macros without security checks. Use this feature with extreme caution, only for folders with high security control.

9. Click OK to save your settings.

Navigating Excel's Trust Center Settings: The image shows the steps to access and modify trusted locations in Microsoft Excel, ensuring the security and integrity of opened documents.

Real-World Security Example: The Phishing Trap

Imagine a user in London receives an email with an Excel attachment titled "Q4_Invoice_Report.xlsm."

• Bad Security (Enable all macros): The malicious macro runs instantly upon opening, potentially downloading and executing malware that compromises the user’s entire network.




• Default Security (Disable all macros with notification): The user sees a warning banner. A clever social engineering message in the email might trick them into clicking "Enable Content." The macro runs, leading to compromise.




• Best Security (Digitally Signed or Trusted Location): The macro is blocked and will not run because it is not signed by a trusted publisher. The user is safe.

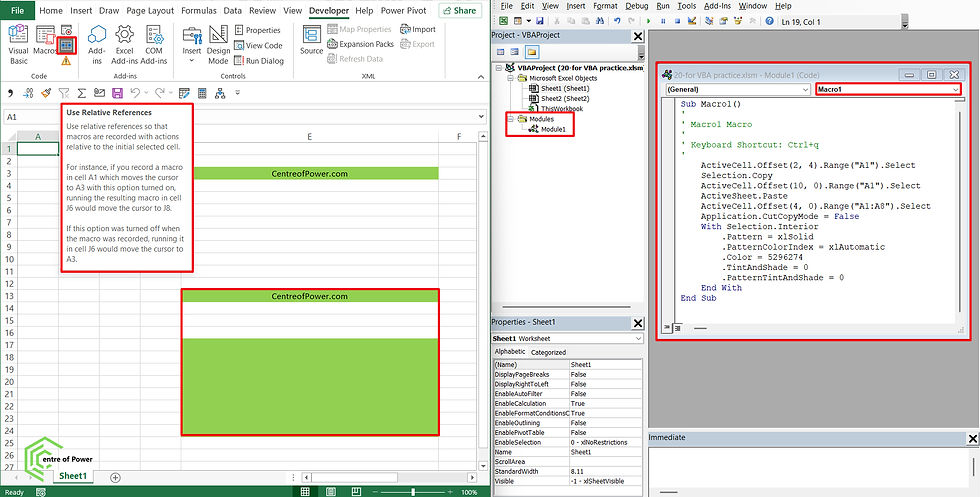

Excel VBA Interface Demonstration: Displaying Macro Code with Relative References Tutorial.

Relative Referencing in VBA: The Key to Flexible Code

While security protects you from external threats, Relative Referencing in VBA ensures your internal automation is robust and adaptable. Absolute references (e.g., Range("A1").Value = 10) always target the exact same cell, which is inflexible. Relative referencing allows your code to manipulate cells relative to the ActiveCell or a defined starting point, making it usable regardless of where the data is located.

Methods for Relative Referencing

There are two primary ways to implement relative referencing in VBA:

1. Using the Offset Property

The Offset property is the most common and powerful way to reference a cell relative to another cell or range. The syntax is Range.Offset(RowOffset, ColumnOffset).

• RowOffset: Number of rows to move (positive for down, negative for up).

• ColumnOffset: Number of columns to move (positive for right, negative for left).




Example Code:

VBA

' Assuming the ActiveCell is A1 and there is the text in E3 cell
Sub Macro1()
'Macro1 Macro
'keyboard shortcut: Ctrl+q
ActiveCell.Offset(2, 4).Range("A1").Select
Selection.Copy
ActiveCell.Offset(10, 0).Range("A1").Select
ActiveSheet.Paste
ActiveCell.Offset(4, 0).Range("A1:A8").Select
Application.CutCopyMode = False
With Selection.Interior
	.Pattern = xlSolid
	.PatternColorIndex = xlAutomatic
	.Color = 5296274
	.TintAndShade = 0
	.PatternTintAndShade = 0
End With
End Sub

2. Using the Cells Property within a Loop

When working with large tables or dynamic ranges, the Cells property is superior, especially when combined with variables. It allows you to use variables for both the row and column index, making the reference highly dynamic. The syntax is Cells(RowIndex, ColumnIndex).

Example Code:

VBA

Sub ProcessDynamicData()
    Dim LastRow As Long
    ' Find the last row of data in Column A
    LastRow = ActiveSheet.Cells(Rows.Count, "A").End(xlUp).Row

    ' Loop through all rows starting from row 2
    For i = 2 To LastRow
        ' Referencing the cell in the current row (i) and the first column (1 = A)
        ' and placing a formula in the cell two columns over (3 = C)
        ActiveSheet.Cells(i, 3).Formula = "=B" & i & "*1.1" ' Applies a 10% markup
    Next i
End Sub

Step-by-Step: Implementing Relative Referencing with Offset

Let's say you have a selected cell and want to: 1) enter a date one column to the left, and 2) enter a name two columns to the right and one row down.

1. Open the VBA Editor: Press Alt + F11.

2. Insert a New Module: Go to Insert > Module.

3. Write the Subroutine:

   VBA

   Sub RelativeEntryExample()

   ' Check if a single cell is selected

   If Selection.Cells.Count = 1 Then

   ' 1. Enter today's date one column left (RowOffset=0, ColumnOffset=-1)

   Selection.Offset(0, -1).Value = Date




   ' 2. Enter a name two columns right and one row down (RowOffset=1, ColumnOffset=2)

   Selection.Offset(1, 2).Value = "New Entry"

   Else

   MsgBox "Please select a single cell to run this macro.", vbCritical

   End If

   End Sub




Practical Real-Life Usage: The Multi-Currency Report 💱

A finance team in Mumbai needs to convert daily sales figures from local currency (Column B) to USD (Column C) across hundreds of reports, where the data starts on a different row each time.

Problem with Absolute: If the macro uses Range("C5").Formula = "=B5/90", it only works if the data starts in Row 5.

Solution with Relative Referencing:

1. The user selects the first sales figure (e.g., cell B10).

2. The macro applies a formula to the cell in the same row, one column to the right.

   VBA

   Sub CurrencyConversion()

   Const ExchangeRate As Double = 83.0 ' Example Rate




   ' Check if the user selected a cell

   If Not ActiveCell Is Nothing Then

   ' Apply the conversion formula one column to the right

   ' Formula: ActiveCell Value / ExchangeRate

   ActiveCell.Offset(0, 1).Formula = "=" & ActiveCell.Address(False, False) & "/" & ExchangeRate




   ' Auto-fill the formula down to the last row of data in Column B

   Dim LastRow As Long

   LastRow = ActiveCell.Offset(0, -1).End(xlDown).Row




   ' Extend the formula down to the last row

   ActiveCell.Offset(0, 1).AutoFill Destination:=Range(ActiveCell.Offset(0, 1), ActiveCell.Offset(LastRow - ActiveCell.Row, 1))




   MsgBox "Currency conversion complete.", vbInformation

   Else

   MsgBox "Please select the first cell of the sales figures.", vbCritical

   End If

   End Sub

This macro is location-independent; it works as long as the user selects the first cell of the sales data.

AI & VBA: Modernizing Security and Code

AI tools, particularly Large Language Models (LLMs) like Gemini (Google), ChatGPT (OpenAI), and Claude (Anthropic), have become powerful companions for VBA development.

Possible AI Usage for the Topic

• VBA Code Generation: AI can rapidly generate the boilerplate code for relative referencing logic (e.g., "Write a VBA sub that selects the next empty cell in column D relative to the current selection").

• Security Review: An advanced AI can analyze an existing macro and highlight potential security vulnerabilities (e.g., the use of dangerous commands like Shell or manipulating system files).

• Refactoring & Optimization: AI can take absolute-referenced code and suggest modifications to use Offset or Cells for better relative referencing, significantly improving code flexibility.

• Documentation: AI can automatically generate clear, professional comments and explanations for complex relative referencing logic, a major benefit for team collaboration in locations like the US and UK.

Which AI Suits Best for Querying Advice?

Gemini (or similar LLMs with strong coding and search capabilities) suits best for querying advice on VBA Macro Security and Relative Referencing issues.

Why:

1. Code Generation & Explanation: It excels at generating accurate VBA code snippets for relative referencing (e.g., correct Offset and Cells usage) and explaining complex security concepts in clear, professional language.

2. Up-to-Date Security Knowledge: Given its integration with real-time information via search, it can provide the most current recommendations on Microsoft Office security policies (like the default blocking of internet-downloaded macros) which are frequently updated.

3. Contextual Problem Solving: When presented with an error message or a specific workbook structure, an LLM can analyze the context and suggest the precise relative reference change required for a fix.

Secure Your Future Automation

Don't let the power of VBA be your weakness. Immediately review your Microsoft Office Macro Security settings in the Trust Center and commit to the "Disable all macros except digitally signed macros" or "Disable all macros with notification" level. When writing new code, shift your mindset from fixed (absolute) cell addresses to dynamic (relative) referencing using the Offset and Cells properties. By prioritizing both security and flexibility, you ensure your automation is both powerful and safe, regardless of where in the world your data takes you.

FAQ: Macro Security and Relative Referencing

Q1: What is the primary security risk of using Excel Macros?

A: The main risk is that malicious actors can embed code (malware, ransomware) within a macro in a document sent via email or download. If a user enables the macro, the code can execute with the user's permissions, potentially leading to data theft, system compromise, or network-wide infection.

Q2: How can I safely share an Excel file with macros with a colleague I trust?

A: The safest method is to have the VBA project digitally signed with a certificate from a Trusted Publisher. If this isn't feasible, ensure your colleague sets the file as a Trusted Document (which only works on their local machine) or places the file in a Trusted Location (a specific folder) after confirming the source is legitimate.

Q3: What is the difference between Absolute and Relative Referencing in VBA?

A: Absolute referencing (e.g., Range("A1")) always points to the exact, fixed cell location. Relative referencing (e.g., ActiveCell.Offset(1, 0)) refers to a cell position based on its relationship to another cell (usually the ActiveCell), making the code reusable and flexible for dynamic data structures.

Q4: When should I use Offset versus the Cells(row, column) property for relative referencing?

A: Use Offset when you need to refer to a small, fixed distance from a known starting point (like the active cell) and the offsets are constant. Use the Cells(i, j) property when you need to loop through a large, dynamic range of data, as the row and column can be controlled using variables (i and j).

Q5: I downloaded a macro-enabled file, and now I see a "SECURITY RISK" banner that doesn't allow me to enable content. Why?

A: This is due to a recent security update in Microsoft Office (enabled by default in Microsoft 365) that blocks macros from running in files downloaded from the internet (files with the Mark of the Web). To unblock it, you must right-click the file, go to Properties, and check the Unblock box under the General tab, or place the file in a Trusted Location.

Q6: Can AI help me debug a VBA macro that uses complex relative referencing?

A: Yes, absolutely. You can copy the code snippet and the error message (or the unexpected output) into an LLM like Gemini. The AI can often quickly analyze the referencing logic, identify incorrect Offset or Cells parameters, and provide the corrected, working code.

Final Thoughts

Macro security and relative referencing are two sides of the same coin: one ensures safety and trust, the other ensures flexibility and power. When used together — and enhanced with AI support — they can transform how you use Excel and other Office applications.
